eBike models eBike models eBike models

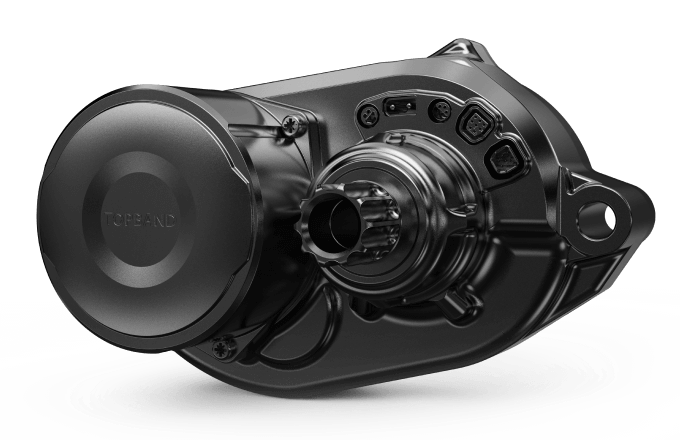

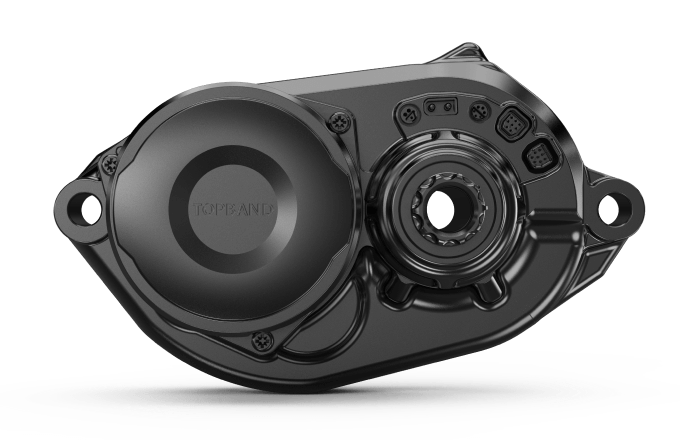

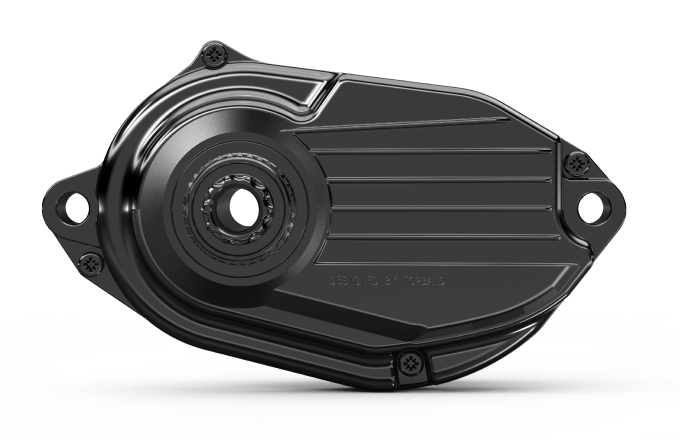

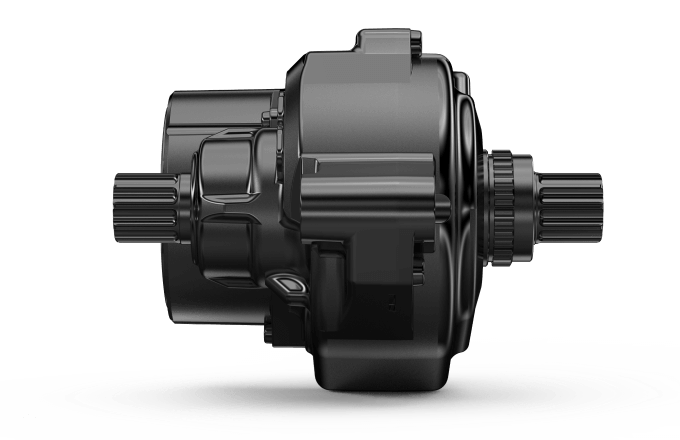

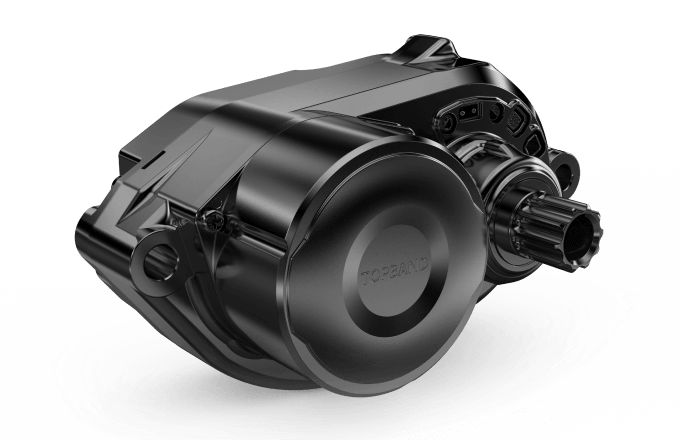

TBM251B

High-strength aluminium-magnesium alloy casting shell, small size and light weight.

Highly integrated controller

Ergonomic side outlet installation design, more convenient for installation and maintenance.

High-precision mute gear transmission, making the transmission smoother, bringing a smooth and quiet riding experience.

Parameter

Rated Power
250W

Max Speed
25-45km/h

Max Torque
85N.m
See more
Consult now >
  • Model No.
  • TBM251B
  • Position
  • Mid Motor
  • Usaget
  • eRoad,eGravel
  • Dimensions/Size
  • A (mm)
  • 184
  • B (mm)
  • 110
  • C (mm)
  • 145
  • CL（mm）
  • 45-52
  • Core Data
  • Wheel Size (Inch)
  • 20-29
  • Nominal Voltage (Vdc)
  • 36
  • Rated Power (W)
  • 250
  • Speed Limit (km/h)
  • 25
  • Max Effective Torque*(N.m)
  • 60
  • Peak Torque (N.m)
  • 85
  • Pedal Sensor
  • Cadence & Torque
  • Shaft Standard
  • ISIS
  • Color
  • Black
  • Weight (kg)
  • 2.4
  • Function
  • Smart mode
  • Yes
  • E-Brake
  • Optional
  • Light Drive Capacity(Vdc/w)
  • 36 / 3
  • Tests & Certifications
  • IP65 CE/UKCA/EN14766/ROHS
