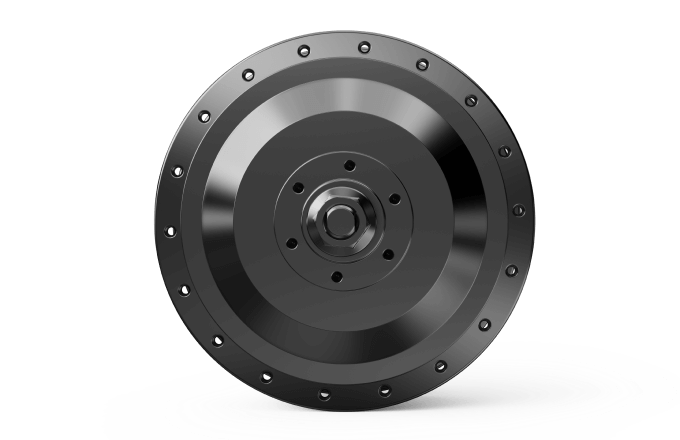

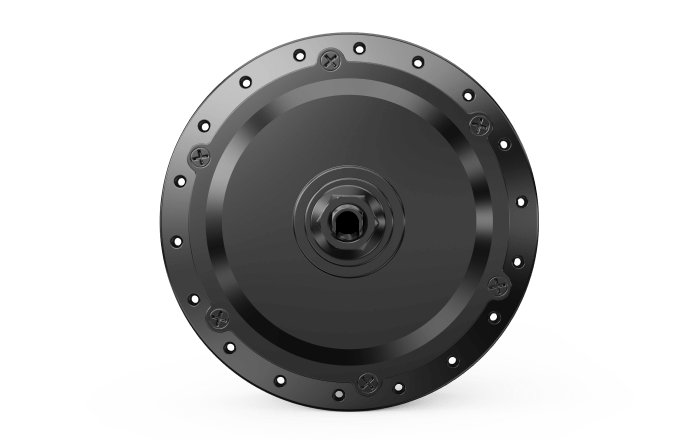

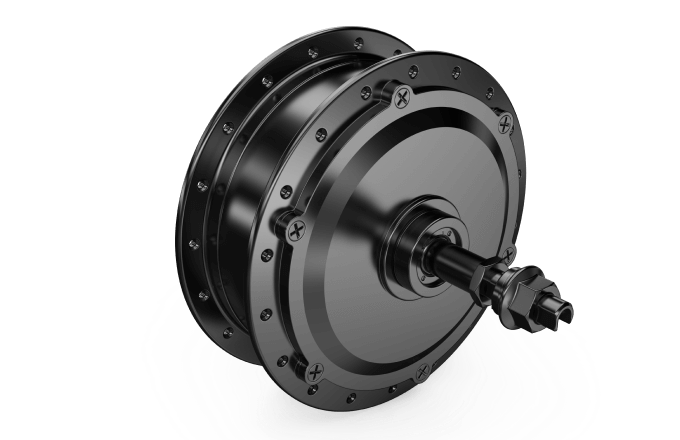

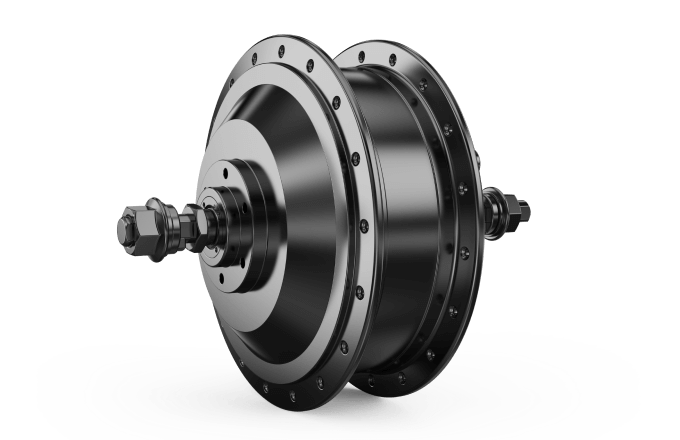

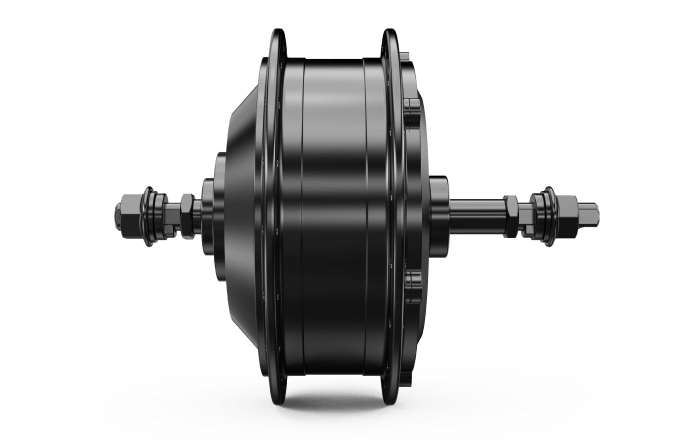

TBR503A

high life reliability, long warranty period, after-sales maintenance costs have an advantage.

helical gear drive system sound quality and vibration is better, riding feeling can gain advantage.

High maximum torque, up to 70N.m.

Parameter

Rated Power
500W

Max Speed
25/32km/h

Max Torque
≥70N.m
See more
Consult now >
  • Model No.
  • TBR503A
  • Position
  • Rear Motor
  • Senario
  • eTrekking, eSpeed
  • Dimensions/Size
  • Size(mm)：A/B/C
  • 78.7/46/158
  • Size(mm)：D/E/F
  • 145/M12、M14/0.7
  • Size(mm)：G/H
  • 18/29.5
  • WL/WR(mm)
  • 66.8/68.2
  • OLD(mm)
  • 135
  • Core Parameters
  • Wheel Size (Inch)
  • 20-29
  • Nominal Voltage (Vdc)
  • 48
  • Rated Power (W)
  • 500
  • Max Speed (km/h)
  • 25/32
  • Max Torque (N.m)
  • ≥70
  • Color
  • Black
  • Weight (kgs)
  • 3.65
  • Mounting Parameters
  • Brake
  • Disc-Brake
  • Cabling Route
  • Axle_right
  • Cable Length(mm), Connection Type
  • 250 G9.6
  • Spoke Specification
  • 36H*13G
  • Sprocket Wheel
  • 5-7
  • Tests & Certifications
  • IPX5 ROHS / CE/UL2849
